ON WHICH PINS TO USE IT ?
Pins :
- DIN 7979,
- DIN 7978,
- ISO 8735,
- ISO 8736 de 5 à 20 mm.
Knockout screws : from M3 to M10.
Keys :
- DIN 6885 E,
- DIN 6885 F,
- NFE 22181.
FOR WHICH USERS ?
- Assembly technician.
- Service Engineer.
HOW TO USE THIS TOOLS ?

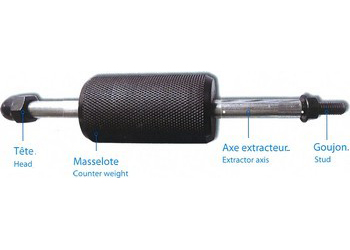

1- Choose a stud adapted to the taping of the pin and screw it onto the extractor axis.
2- Screw this unit onto the pin.
3- Hit the counter weight against the head of extractor so that the pin ejects.
