Standart temel özellikler
Designation : INTERVIS® Screws sert technical for soft materials
Usual standards : INTERVIS®
Standard material : Brass
Comments : This product is especially for soft materials such as wood, chipboard, plastic ...

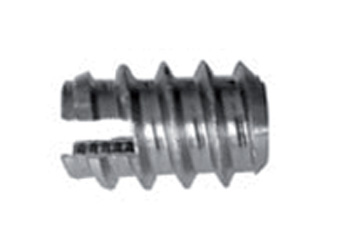

The Screw-sert is a metallic insert composed by a normalized threaded and an appropriate external threading.
Truncation of external thread.
Two grooves with sharp edges.
Advantages :
- Without pre-tapping.
- Perfect anchoring of the SCREW SERT, no clearance between it and the part.
- Security increased for high pull-out.
- Tapping wear suppression.
See the boxed INTERVIS screw sert technical steel.
|

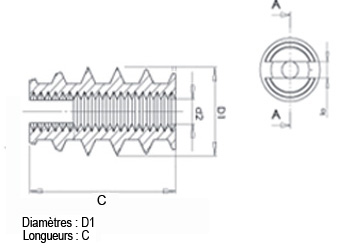

Material = Brass
|
| M |
Thread ISO
|
Length |
| |
Inside d2
|
Outside d1
|
C |
| M3 |
3 X 0,50 |
5,5 X 1,6 |
6 |
| M4 |
4 X 0,70 |
7 X 2,5 |
10 |
| M5 |
5 X 0,80 |
9 X 3 |
12 |
| M6 |
6 X 1,00 |
10 X 4 |
14 |
| M8 |
8 X 1,25 |
13 X 4 |
20 |
| M10 |
10 X 1,50 |
16 X 5 |
23 |
| M12 |
12 X 1,75 |
19 X 5 |
26 |
